    Bag filter products - Wo Yi purification

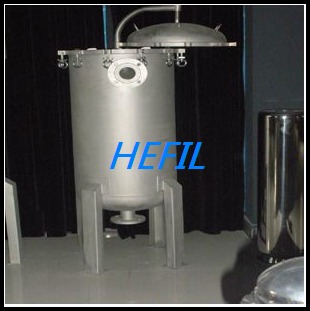

    Stainless steel sandwich bag filter layer structure, the interlayer can be steam or hot oil in order to maintain or increase the temperature of the fluid to prevent fluid solidification, viscous liquid filtration speed, or to meet the temperature requirements of the next process. 304 stainless steel and 316 stainless steel filter material. (Bag filter is a new filtration system inside the filter with the filter bag supported by a metal net, the liquid from flowing into the entrance by bag filter out impurities are intercepted in the bag, the bag can be continue to use the replacement.)

    Has a high dirt holding capacity, resistance to corrosion, temperature, flow, easy to operate, long life, there is no fiber shedding and many other features.

    Wo benefits manufacturers of professional high-quality bag filter to provide a series of filter bags!

    ===Common specifications===
Dimension table
Model A B C D E F Thermal conductivity of the mouth size
Max. Min.
SAM-1J 830 847 723 628 535 455 260 1/2 "pipe tooth
SAM-2J 1570 1217 998 998 905 825 260 1/2“管牙
SAM-4J 698 611 488 488 404 354 150 1/2“管牙
Technical parameters
Model Filter area
(M2)
Maximum flow
(M3 / h)
Working pressure
(Mpa)
Standard import and export Material
(Stainless steel)
Cylinder diameter
(mm)
Cylinder height of
(Mm)
SAM-1J 0.25 20 1.0 2"法蘭 304/316 219 609
SAM-2J 0.5 40 1.0 2-3"法蘭 304/316 219 938
Filter precision: 3,0 5,1,5,10,15,25,50,100,200,300,400,500,600 μm
(Wo beneficial purification company supporting the filter media: filter bags)
